Riding a Yamaha WaveRunner brings thrilling moments on the water; however, achieving optimal performance involves understanding its core parts and systems. One of the most critical components of the WaveRunner is the impeller, which is better known as a jet ski’s heart. An impeller’s primary function is to create an internal thrust that moves a WaveRunner forward. This guide seeks to provide jet ski owners with an overview of the Yamaha WaveRunner impeller, its function, maintenance requirements, and potential issues that can arise. This article will provide both seasoned and beginner personal watercraft users with practical advice and technical information to improve the performance of their WaveRunner and prolong its life.

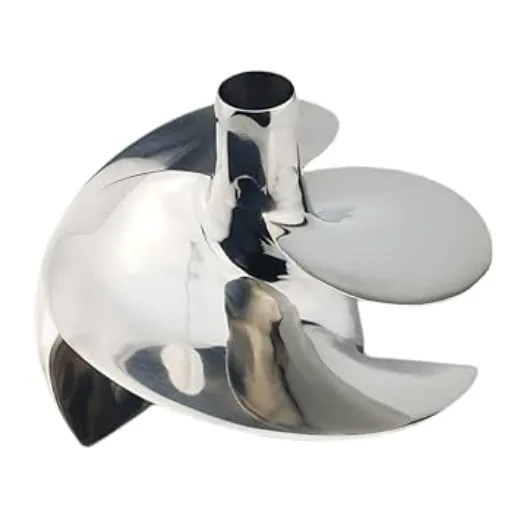

What is a WaveRunner impeller and why is it important?
The WaveRunner impeller is a precision-engineered part within the jet pump assembly. It is also a component of “the watercraft’s propulsion system,” which is critical for controlling speed, maneuverability, and fuel consumption when it operates. An impeller pulls water into the pump and then passes it at high speed through the nozzle to get thrust, which moves the watercraft forward. Smooth acceleration and optimal handling depend on the effectiveness of the impeller.
Understanding the role of impellers in jet propulsion
In the jet propulsion system of a WaveRunner, the impeller serves as the most crucial part that changes the rotational energy into thrust. The engine engaged with the impeller rotates, pulling water into the jet pump housing. The water is then put under pressure and blown out of the nozzle at high speed, which creates thrust. The thrust is influenced by the design of the impeller and its blades, such as the number of blades and the angle they are positioned at. Unlike conventional propellers, impellers function in a closed system, which minimizes cavitation and increases efficiency. The design also provides strong and reliable thrust control, making the impeller a critical part of the effective functioning of jet watercraft.
How impellers affect WaveRunner performance and speed
A WaveRunner’s performance and speed are directly affected by the state and design of the impeller. An appropriately designed and well-maintained impeller provides maximal water intake and thrust, resulting in better acceleration and top-end speed. The tilt of the blades and the material construction are significant; for example, higher-engine pitched impellers give better top speeds, but lower-engine variants are suitable for adding low-end torque and acceleration. In addition, any damage or wear on the impeller can significantly diminish its efficiency and performance. With a customized or high-performance impeller, speed and handling can be optimized, and the WaveRunner can be set up for specific riding conditions or user preferences.
OEM vs. aftermarket impellers: What’s the difference?
The primary distinction between OEM (Original Equipment Manufacturer) and aftermarket impellers is their purpose and effectiveness. The manufacturer of the WaveRunner makes OEM impellers for each model. These impellers are designed to achieve the best balance, durability, and compatibility for all intended uses but are poorly focused for many conditions.
On the other hand, aftermarket impellers are made by third-party manufacturers to enhance particular performance aspects. They come in various pitches and materials that enable them to achieve multiple tasks, such as higher top speeds, improved low-end torque for towing, or enhanced fuel efficiency. High-performance aftermarket impellers are often made of advanced materials like stainless steel or lightweight alloys that offer durability and superior handling in demanding conditions. However, aftermarket options may sometimes require additional tuning or modification to satisfy compatibility with the WaveRunner.
Ultimately, selecting OEM and aftermarket impellers depends on the rider’s needs. OEM impellers are ideal for standard and dependable performance, while aftermarket options are best for dependable performance aimed at particular riding preferences.
How do I choose the correct impeller for my Yamaha WaveRunner?
Determining the appropriate impeller for your Yamaha WaveRunner calls for consideration of your desired level of performance and how you intend to use the watercraft. First, select the goal: maximum speed, improvement in acceleration rate, towing capacity, or fuel economy. During casual height performance recreational activities, an OEM impeller performs adequately without compromising other performance parameters. Suppose you want to improve a particular performance feature of the WaveRunner. In that case, aftermarket impellers such as high-pitch and low-pitch for superior top speed and low-end torque are available. In addition, verify that the aftermarket impeller is appropriate for your WaveRunner model and ascertain whether you need to fine-tune or modify anything else. A professional or the manufacturer’s documentation can also provide significant performance tips.
Factors to consider: Engine type, model, and riding style
When selecting an impeller, three components stand out: engine type, model, and riding style. The rider’s engine type defines the power and torque range, defining the best optimum impeller pitch for their intended use. It is crucial to ensure that the impeller is specific to the WaveRunner model to reduce compatibility and efficiency issues. My riding style also affects my decision significantly, especially when I cruise slowly at high speeds, accelerate quickly, or tow. For example, acceleration and towing-of-the-lines are done with low-pitch impellers, while high-pitch units aid high-speed enthusiasts. These reasons are the foundation of ensuring that my WaveRunner performs precisely as I need.
Decoding impeller pitch and blade count
The pitch on an impeller defines the distance the unit can travel through water in a singular turn without any sort of resistance acting upon it. Greater pitch values can achieve a higher top speed, while increased acceleration and low-end power are achieved with lower values. A low-pitch impeller is perfect for many situations, such as boating and quick speed bursts, and is highly sought after by performance lovers. On the contrary, racing enthusiasts love a high-pitch impeller for the absolute velocity when speed is the only requirement.
On the other hand, growth, such as the increase in the number of teeth blades on the impeller, affects water displacement and flow patterns. Bladed vehicles, like the 3-blade impellers, have reduced drag, which serves for high-speed performance as they offer less resistance in water. On the other hand, impellers with 4 or 5 blades provide smoother thrust production and better grip, which helps in towing, rough water, and sharp turns.
An impeller has to be selected so that pitch and blade count proportions match the engine power, expected use, and environmental conditions of the WaterCraft. This ensures that the jet propulsion system gives maximum output and efficiency and extends its service life.
Popular impeller brands: Solas, OEM, and aftermarket options
Solos is my go-to for WaveRunners because they are known for their craftsmanship and design, focusing on performance. On the other side, OEM suppliers, the original manufacturers of the impellers, are ideal for users who need reliability and compatibility with specific pieces of equipment. Aftermarkets are more flexible with the pieces of equipment and specialize in speed tuning or more resistant parts. Each brand has pros and cons, so it all comes down to the desired performance and riding conditions.

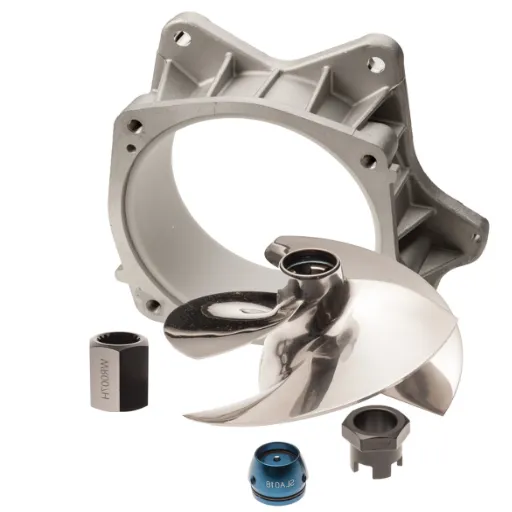

What are the benefits of upgrading my WaveRunner’s impeller?
Modifying the WaveRunner with a new impeller and an upgraded pod provides several key advantages to enhance performance and efficiency. High-performance impellers are tailored to boost acceleration, allowing the watercraft to respond to throttle input faster and plane more effortlessly. They are also beneficial for fuel efficiency and top speed when they reduce cavitation and boost the overall hydrodynamic efficiency of the propulsion system. An impeller customized toward specific applications like towing or racing can significantly increase performance in those activities. Moreover, upgraded materials often increase durability, making the impeller more resistant to challenging riding conditions.
Increased acceleration and top speed
Activity-modified WaveRunners reach incredible top speeds significantly faster due to improved water flow and minimum cavitation, which boost fuel efficiency. Performance impellers are specially designed for dry docking thrust, allowing the watercraft to plane quicker and increasing speed while under load. They decrease prop cavitation, which improves propulsion while increasing speed underwater. In addition, the aftermarket impellers cut the engine’s ideal RPM, increasing the engine’s speed potential and efficiency. These benefits are vital in activities like high-speed cruising and competitive racing.
Improved fuel efficiency and engine performance
Replacing an OEM with a performance impeller allows for higher fuel efficiency due to improved water flow and reduction of strain on the engine. Aftermarket impellers enable optimal engineering operating conditions where fuel is conserved at a given power level. The smoother thrust from reduced cavitation propels the vehicle more efficiently, resulting in less wasted energy and increased engine life. All these factors greatly benefit the car as they will reduce fuel expenditure and help keep the engine in good long-term condition.
Enhanced handling and overall riding experience
Aftermarket performance propellers allow for better throttle response and overall acceleration of the craft, enhancing control during turns thanks to improved water intake. Most aftermarket claims boast precision pitch blades, useful for high cornering and bolstered prop slippage in firm performance and rough riding conditions. This enables tighter turning, less slip, and better acceleration while greatly assisting in propeller cavitation. The controlled thrust from reduced cavitation gives riders a better and more controlled riding experience, with increased efficiency and decreased turbulence experienced. Increased propulsion efficiency and reduced turbulence experienced while riding improve safety for watercraft riders while retaining optimal riding conditions.
How do I install a new impeller on my Yamaha WaveRunner?
I always pay attention to details when completing the work on my Yamaha WaveRunner. To change the impeller, I first disconnect the battery and adequately tilt the watercraft to reach the pump assembly. After that, I removed the bolts intake grate and the old impeller from its housing. When removing the old impeller, I ensure the tool does not damage the threads or shaft. After removing the old one, the housing is checked for wear and debris. A greased marine grade was put on the shaft to make installation easier. After the new impeller is firmly put on, the pump parts are returned, ensuring all bolts are torqued according to the manufacturer’s requirements. At last, the battery is connected, and the watercraft is tested in a controlled environment to check its functionality. For more specific information and instructions, make sure always to check the service manual provided by Yamaha.
Step-by-step guide to impeller replacement
- Disconnect the power – I begin by disconnecting the battery to ensure safety.
- Access the pump assembly – I carefully tilt the WaveRunner and remove the intake grate to reach the pump housing.
- Remove the old impeller – Using a specialized impeller removal tool, I unscrew and extract the old impeller while protecting the threads and shaft from damage.
- Inspect and prepare the housing – I check the impeller housing for wear, clean out any debris, and apply marine-grade grease to the shaft.
- Install the new impeller – I secure the new impeller in place, following Yamaha’s torque specifications for accuracy.
- Reassemble components – I reinstall the pump assembly and intake grate, ensuring all bolts are tightened to the required torque.
- Reconnect and test – Finally, I reconnect the battery and conduct a performance test in a safe, controlled environment to confirm everything is functioning correctly.
I always refer to the Yamaha service manual for specific details and additional precautions throughout the process.
Tools and materials needed for installation
To successfully replace the impeller on a Yamaha WaveRunner, the following tools and materials are essential:
- Specialized impeller removal tool – Required for safely removing the old impeller without damaging threads or the shaft.
- Torque wrench – Critical for tightening bolts and components according to Yamaha’s specified torque values.
- Socket set and screwdrivers – Basic tools for disassembling and reassembling the intake grate, pump housing, and related components.
- Marine-grade grease – Used to lubricate the shaft and prevent corrosion during reassembly.
- Yamaha-approved replacement impeller – Ensure compatibility with your specific WaveRunner model for optimal performance.
- Protective gloves – To provide a secure grip and safeguard hands against sharp edges during the process.
- Cleaning tools (such as rags and brushes) – For removing debris from the pump housing and surrounding parts.
- Yamaha service manual – A comprehensive guide to confirm correct procedures and specifications throughout the operation.
These tools and materials are essential to ensure a precise, efficient, and damage-free installation. Always prioritize safety and reference official documentation for best results.
Common mistakes to avoid during the process
One of the most common blunders is neglecting the consultation of the respective Yamaha service manual, which may result in incorrect torques or misalignment of parts that can be harmful in the long run. Another common mistake is the incomplete washing of the pump housing and other parts before reassembly, which can impede the wearer’s debris-laden performance. Most people also fail to realize that marine-grade grease is crucial for the shaft, which, if not attended to, can aggravate corrosion and cause maintenance problems afterward. Paying closer attention to these matters will save time in the long run by eliminating the issue.
What maintenance is required for WaveRunner impellers?
WaveRunner impellers require maintenance for optimal performance and longevity, so always ensure basic tasks are conducted, like inspecting the impeller for physical damage. Dents or bent blades can obscure the efficiency. Cleaning the impeller and pump housing is also necessary periodically to remove debris or marine growth that could hinder performance. Adequate lubrication using marine-grade grease for the shaft and splines is essential to prevent rust formation and enable operating efficiency. During routine checkups, make sure you also replace any worn bearings and seals to limit mechanical failure and water intrusion. Most importantly, remember to follow the maintenance schedule of the Yamaha service manual.

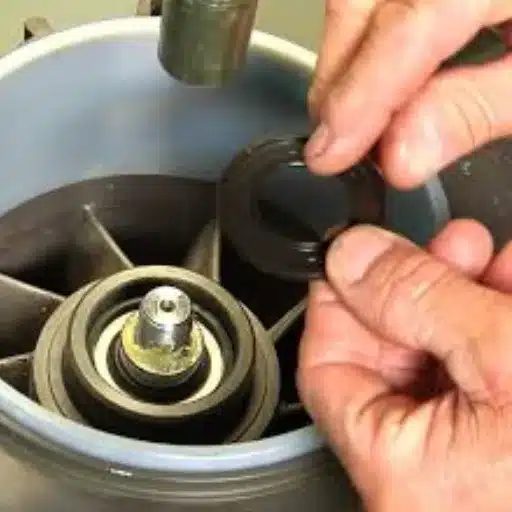

Regular inspection and cleaning procedures
To enhance the performance of your WaveRunner impeller, I start with a visual inspection of the propeller and pump housing, checking for debris, damage, or any signs of wear and tear. I check for and immediately rectify bent blades or dents that impact efficiency. I also clean the pump housing and the impeller with a soft brush or cloth to eliminate any marine organisms, sand, or other debris. Intending to achieve an optimal outcome, I do not use harsh chemicals that could corrode the components. Lastly, I ensure that all moving parts, like the impeller shaft, are properly greased with marine grease, and I refer to the manual to guide me on disassembly or reassembly. Careful steps like these elude long-term repercussions and keep the system working efficiently.
Signs of wear and when to replace your impeller
The performance of your WaveRunner impeller, coupled with other factors, determines propulsion efficiency, along with other matrix features of the machine. Wearing signs include decreased acceleration, vibrations, reduced top speed, or cavitation, which is loss of thrust due to an increased engine RPM. More visual signs, such as cracks, dents, bent blades, and excessive corrosion, should be dealt with immediately.
Impellers are replaced when viewed as damaged beyond repair, or their wear dramatically affects performance. One reason is erosion due to pitting from corrosive activities or severe blade deformation. Wearing rings should also be checked because they can affect an impeller’s operation. Manufacturer specifications for tolerances should be adhered to. The wear ring and impeller should be replaced if there is too much clearance between the snap ring and the wear ring.
To avoid over-stressing the engine and enhancing performance on the water, paying attention to replacing the worn part by conducting regular inspections is necessary.
Tips for extending impeller lifespan
Implement a maintenance strategy involving seasonal inspections to increase the longevity of your impeller. Flushing the engine with fresh water after operating in saltwater or murky water helps prevent debris and corrosive salt from causing damage to the engine. Avoid operating the engine without water, as the impeller can overheat and break due to a lack of lubrication. It is imperative to guarantee that the cooling system is free of blockages. Replace the wear ring when space tolerances are reached. These preemptive actions will lessen excessive wear and allow for optimal engine performance.
Which impeller models are best for specific Yamaha WaveRunner series?
Your Yamaha WaveRunner’s specific series and application must guide the impeller’s choice. High-performance models like the GP and FX Series benefit from the thrust and durability of Solas Concord stainless steel or Yamaha OEM stainless steel impellers. Recreational or cruising models such as the VX series are best equipped with a Solas Dynafly, as it allows for decent efficiency and mid-range acceleration. The EX series has YB-style impeller options that increase responsiveness, so the Solas YB series is recommended. The intended impeller must be appropriate for the WaveRunner’s model year and specifications to ensure maximum thrust and efficiency.
Recommended impellers for FX, GP, and EX series
Always crosscheck the model year and model of the WaveRunner to ensure proper application; otherwise, optimal performance cannot be achieved. I recommend Solas Concord stainless steel impellers for the FX series for their excellent balance of top speed and acceleration. For the GP series, peak racing and aggressive riding performance can be achieved with the Yamaha OEM stainless steel or Solas Concords. For the EX series, recommended solas YB propellers increase lower-end torque and are designed for lightweight, compact models.
SVHO and HO engine-specific impeller options
Solas Concord is recommended for SVHO Super Vortex High Output engines because they alone can manage extreme power levels, translating to exceptional top speed and acceleration. Another great alternative is the Skat-Trak Swirl, which is well known to provide excellent cavitation resistance and enhanced overall performance, especially with high boost setups.
For HO High-Output engines, Yamaha OEM impellers are highly regarded for their combined efficiency and reliability. In addition, those seeking higher thrust and smoother acceleration can consider Solas Concord and Solas Dynafly impellers. These models cater to various riding styles and intensities, from casual to high performance.
As all riding conditions vary and every WaveRunner has a specific year and model, choosing the appropriate riding style and intended use is critical when selecting the proper level of performance and compatibility needed from the impeller.
Impeller solutions for older Yamaha WaveRunner models
Selecting the correct impeller is key for any older models of Yamaha WaveRunner when trying to maintain or enhance performance, particularly for stock or older units. The Solas Concord series, for instance, has always remained a favorite for older models because of the exceptional acceleration and stability these units deliver. Furthermore, the cavitation resistance and adaptability to older engine designs of the Skat-Trak Swirl impeller make it highly recommended since it enhances the durability and overall efficiency of the unit.
Yamaha’s original impellers are always reliable OEM replacements because they provide a proper fit and function while restoring factory performance. Solas Dynafly impellers are best suited for older WaveRunner models to enhance capabilities, providing better handling and smoother rides in rough conditions.
One thing that should always be remembered is that when upgrading older model units, aftermarket impellers must always have the specifications, year, displacement, and engine type checked for compatibility issues. When considering other riding conditions such as salt water or fresh water, as well as load type, which can range from a single rider to tandem riding, shifts the choice of the impeller.
How do different impeller designs affect WaveRunner performance?
Different designs of the impeller significantly influence the performance of the WaveRunner, economizing factors like acceleration, maximum speed, fuel consumption, and handling. Racing axial-flow impellers experienced the most effectiveness as they optimize top-end speed and allow for high stability while cruising. On the other hand, mixed-flow impellers are placed in between the two categories. They are suitable for recreational use because they balance top speed, acceleration, and various water conditions. Gears with a decreased pitch primarily assist in low-end torque acceleration, whereas increased pitches allow torque to be upped at higher speeds. The number of blades is also restricted; blades contribute to reduced speed and drag but increase resistance to cavitation and high loads, while increased blade count improves speed. With the right choice of gear angle, riders can optimize performance to enhance their personal needs that coincide with the environmental conditions.
Comparing stainless steel and aluminum impellers
Choosing between aluminum and stainless steel impellers is difficult due to the advantages and limitations each possesses. Stainless steel impellers are the best alternative to aggressive riding conditions because they are highly durable to deformation and corrosion and can withstand rough waterways without compromising performance. On the flip side, they are wrought in more challenging conditions, which makes them stronger and more deformation-resistant when under aggressive riding, heavy loads, and high speeds. However, compared to aluminum, stainless steel is heavier, which can slightly inhibit acceleration, and is noticeably more expensive.
On the contrary, aluminum impellers are light and inexpensive, making them suitable for basic and casual applications. While they have acceptable performance ratings, they do not withstand wear and tear from debris or cavitation, as well as stainless steel, and, therefore, have a shorter service life. Eventually, aluminum impellers could deform under severe conditions, hindering efficiency and overall life. Ultimately, the tradeoff between stainless steel and aluminum depends on the rider’s resources, riding environment, and performance expectations. Styl steel excels in long-lasting life and performance, and aluminum is known for being inexpensive and light for low-weight applications.
The impact of blade design on thrust and cavitation
Cavitation risk, along with thrust production, is primarily affected by blade design. Blade angle, surface area, and pitch are among the most critical aspects determining efficiency. For example, higher-pitch blades generate more thrust at higher speeds but lose efficiency during lower speeds. Likewise, blades with larger surface areas are more efficient and can produce higher thrust. At the same time, they are susceptible to increased levels of cavitation due to more significant pressure differentials. Precise engineering is crucial in designing hydrodynamic blades to counteract cavitation, as they help retain uniform water flow while reducing turbulence. Ultimately, thrust requirements should be offset with the need to minimize cavitation for optimum blade design while tailoring for specific operating conditions.
Balancing top speed and acceleration with impeller choice
As previously stated, when looking at a marine propulsion system, an impeller has many implications for top speed and acceleration. While moving at higher speeds, an impeller’s larger diameter or pitched blades greatly enhance the moving water’s speed. This comes at the cost of reduced acceleration due to the more significant engine load. Smaller diameter impellers with lower blade angles increase your rate of acceleration but lose efficiency when it comes to top speed.
Designing an impeller for the engine’s power curve and required application is essential. For instance, high-end performance applications with speed as the primary function might require custom impeller shapes with minimal drag and maximum thrust. At the same time, leisurely or working boats may require emphasis on acceleration and low-speed turning capabilities. Considering blade shape, design, angle of attack, and material enables the wide range of acceleration and speed needed. Aiming for maximum efficiency results from proper engineering and testing in actual operating conditions.
References
Frequently Asked Questions (FAQ)
Q: What is a Yamaha WaveRunner impeller and why is it important?
A: A Yamaha WaveRunner impeller is crucial to the Yamaha personal watercraft (PWC) jet pump system. It propels water through the pump, creating thrust to move the jet ski. The impeller is crucial because it directly affects the performance, efficiency, and speed of your WaveRunner. A high-quality impeller can improve acceleration, top speed, and fuel efficiency while reducing cavitation.
Q: How do I know if my Yamaha impeller needs replacement?
A: Signs that your Yamaha impeller may need replacement include decreased performance, loss of top speed, increased fuel consumption, unusual vibrations, or cavitation issues. Physically inspect the impeller for bent, chipped, or worn blades. If you notice any of these signs or if your impeller has significant wear after extended use, it’s time to consider a replacement.
Q: What’s the difference between OEM Yamaha impellers and aftermarket options like Solas impellers?
A: OEM Yamaha impellers are manufactured to exact factory specifications, ensuring a perfect fit and reliable performance for your specific WaveRunner model. Aftermarket options like Solas impellers often offer performance enhancements or cost savings. Solas impellers, for example, are known for their high-quality construction and can sometimes provide improved performance over stock impellers. However, it’s essential to choose an aftermarket impeller that’s compatible with your specific Yamaha model.
Q: How do I choose the correct impeller for my Yamaha WaveRunner?
A: To choose the correct impeller, consider your Yamaha WaveRunner model (e.g., Yamaha EX, Yamaha FX, FX Cruiser SVHO), intended use (recreational riding, racing, etc.), and desired performance characteristics. Factors to consider include pitch, diameter, and material. Consult your owner’s manual or a marine specialist to ensure compatibility and optimal performance for your specific watercraft.
Q: Can I install a new impeller, or should a professional do it?
A: While installing a new impeller yourself is possible if you’re mechanically inclined, having a professional do the job is often recommended. Proper installation is crucial for optimal performance and to avoid damage to the jet pump or impeller housing. If you decide to do it yourself, follow the manufacturer’s instructions carefully, use the appropriate tools, and ensure proper alignment and torque specifications.
Q: How often should I replace my Yamaha WaveRunner impeller?
A: The frequency of impeller replacement depends on usage, riding conditions, and maintenance. Generally, impellers can last several seasons with proper care. However, if you ride frequently, in rough conditions or sandy/debris-filled water, you may need to replace it more often. Regular inspections and performance monitoring will help determine when replacement is necessary.
Q: What maintenance can I perform to extend the life of my Yamaha impeller?
A: To extend the life of your Yamaha impeller, regularly inspect it for damage or wear, flush the engine with fresh water after each use (especially after saltwater riding), avoid running the jet ski in shallow or debris-filled water, and maintain proper RPM levels during operation. Additionally, ensure the wear ring is in good condition, as a worn wear ring can lead to impeller damage.
Q: Are there any performance upgrades available for Yamaha WaveRunner impellers?
A: Yes, there are performance upgrades available for Yamaha WaveRunner impellers. Aftermarket options like Solas Concord series or other high-performance impellers can offer increased acceleration, top speed, and fuel efficiency. Some upgrades may include pitch or blade designs to optimize performance for specific riding styles or conditions. However, choose upgrades compatible with your particular Yamaha model and intended use.
